SMT peripheral equipment - Intelligent SMT automatic board loading machine

Name: SMT peripheral equipment Intelligent SMT automatic board loading machine
Brand: Kutede
Price: 1 USD

Brand Name : Kutede

Model Number : KTD-143

Certification : ISO

Place of Origin : Shen Zhen China

MOQ : 1sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1sets per mouths

Delivery Time : 15-25 woring days after received the deposit(The actual lead time according to the quantity)

Packaging Details : Accessories packed separately

PCB size range : 50×50mm ~ 530×460mm

Laying board speed : 8 - 12 seconds/board

Power supply : AC 220V 50/60Hz

Equipment weight : about 280kg

Dimensions of the shape : Customizable

Contact Now

SMT peripheral equipment - Intelligent SMT automatic board loading machine

Product Description
The intelligent SMT automatic board loading machine is an efficient front-end auxiliary equipment for SMT production lines. It adopts a modular white industrial design and can automatically take PCB boards from the magazine and precisely transfer them to the reflow soldering machine or the next workstation. The equipment has a compact structure and is equipped with a retractable connection platform, significantly enhancing the automation level of loading and reducing the need for manual intervention.

Product features

Vacuum suction plate + mechanical clamping dual-security plate extraction method, safe and stable
Extensible connection platform, facilitating quick connection with different devices
Hybrid pneumatic + servo drive, smooth operation and precise movements
Standard SMEMA interface, supporting online communication with entire line equipment
Universal wheels at the bottom + adjustable foot cups, flexible movement and stable fixation
Open rack design, facilitating observation and maintenance

Product advantages

High efficiency and energy saving: Automatic continuous plate loading, one person can supervise multiple production lines simultaneously
Flexible adaptability: Supports various PCB sizes and thicknesses, can quickly switch products
Reduce damage: Intelligent adjustable vacuum suction force, effectively protects the PCB surface
High stability: Industrial-grade pneumatic components, low failure rate during continuous operation
Outstanding cost performance: Simple and reliable structure, low maintenance cost

Application scenario

Front-end automatic material loading station of SMT production line
SMT production lines for consumer electronics, automotive electronics, and communication equipment
Mixed production mode for small and medium batch sizes with multiple varieties
Flexible production line requiring frequent line changes

SMT peripheral equipment - Intelligent SMT automatic board loading machine

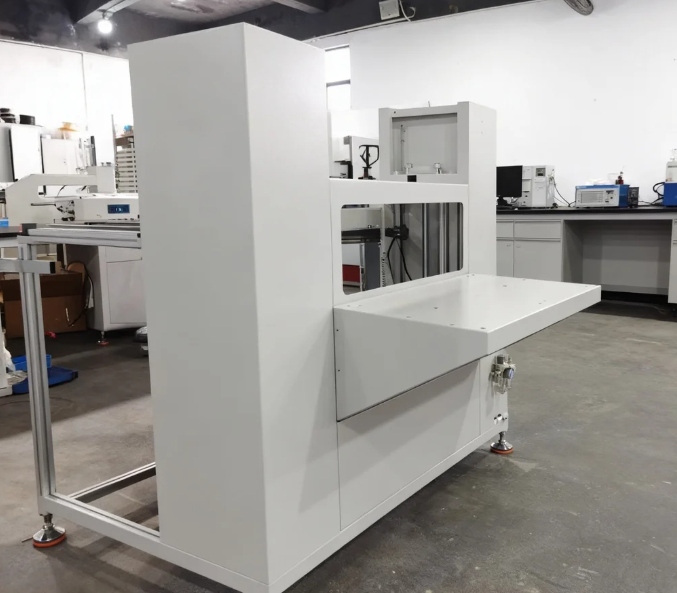

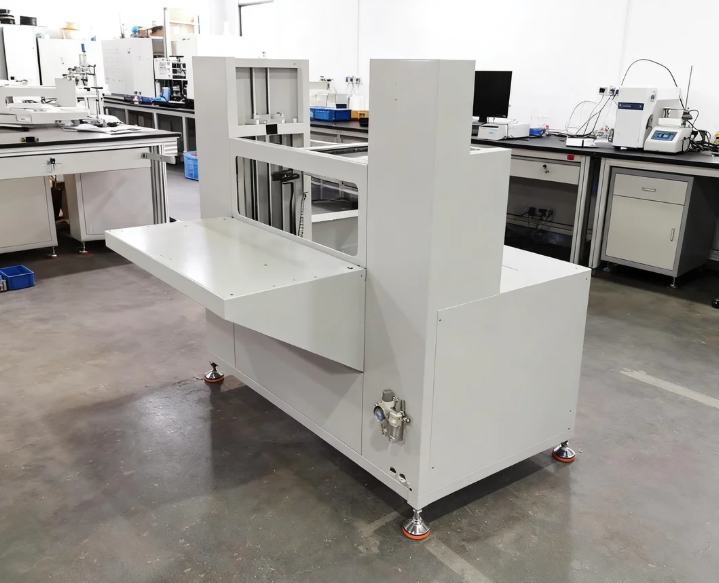

SMT peripheral equipment - Intelligent SMT automatic board loading machine Images
